mobile guide rails wall mounted suspension vacuum suction manipulator

Short Description:

Suspension pneumatic manipulator installation is to install the suspension pneumatic balance manipulator in the air track slide, which can expand the working space of the pneumatic balance manipulator and facilitate long-distance handling tasks.

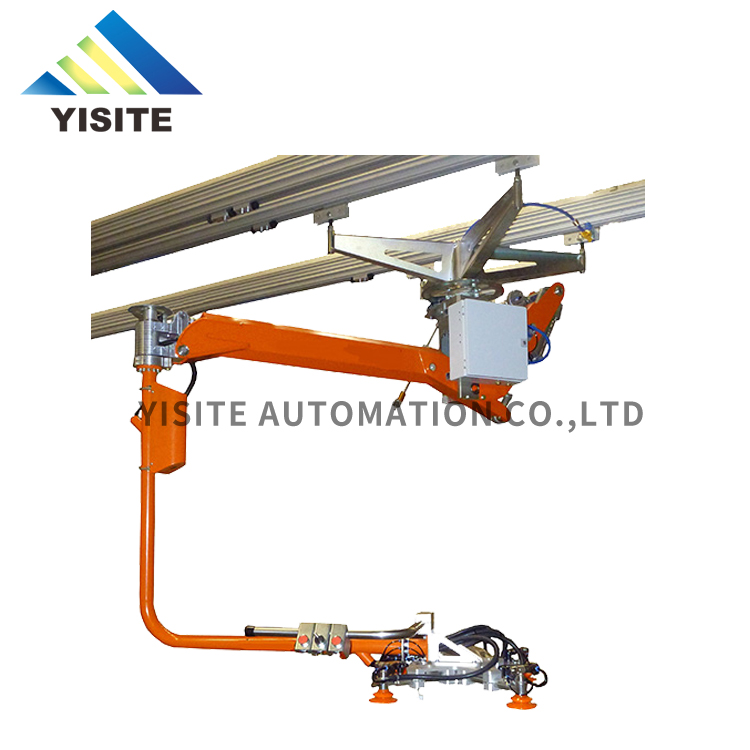

wall-mounted suspension manipulator

Three panel pressure meters installation are set on the right side of the control box and two adjustment knobs of pressure relief valves.Three tables show the gas source pressure, load, and unload(the gas source pressure is after passing through the triad.Load adjustment: according to the different held workpiece, rotate the adjustment turns to the corresponding position, to reach a new balance.Unload balance adjustment: rotate the adjustment knob to the pressure indicated by the empty load.

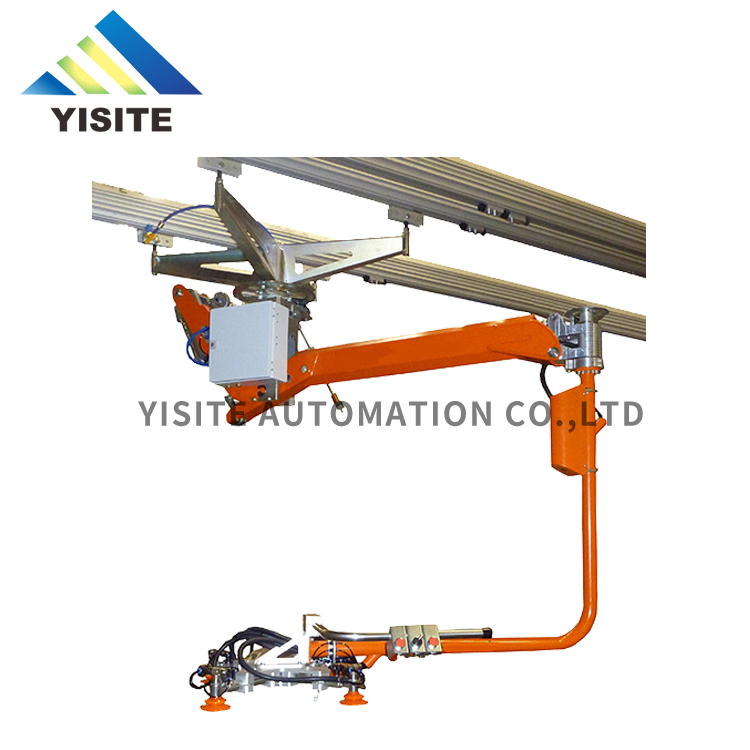

wall-mounted suspension manipulator 2


about us


We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.

Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers

Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.

Product Detail


Product Tags

Product characteristics

(a)With a load display, indicating the load status, informing the operator whether the material can be raised or unloaded.Once the display is red,the system is loaded.
(b) Load pressure gauge indicating working condition of compressed air.
(c)With safety wrong operation protection device to prevent damage to person or equipment; before the operator confirms the installation condition, before the workpiece is not installed, if the worker releases the button (limited to the power fixture),the workpiece won’t unloading.
(d) The system is equipped with a gas loss protection device. When the main gas supply source accidentally breaks off, the main engine arm rod cannot be moved, and the manipulator stops the operation to avoid accidental injury.
(e) With a safety control system. During operation, the system will not suddenly change the load or unload pressure due to wrong action, so the manipulator will not quickly rise or fall and cause damage to the person, equipment or products.



Cost-effective palletizing solution

Safety light curtain controls located at the full pallet’s exit point

Maximum design flexibility enabling the equipment to accommodate most operational requirements and layouts

System can support up to 15 different stacking patterns

Standard components for easy maintenance
