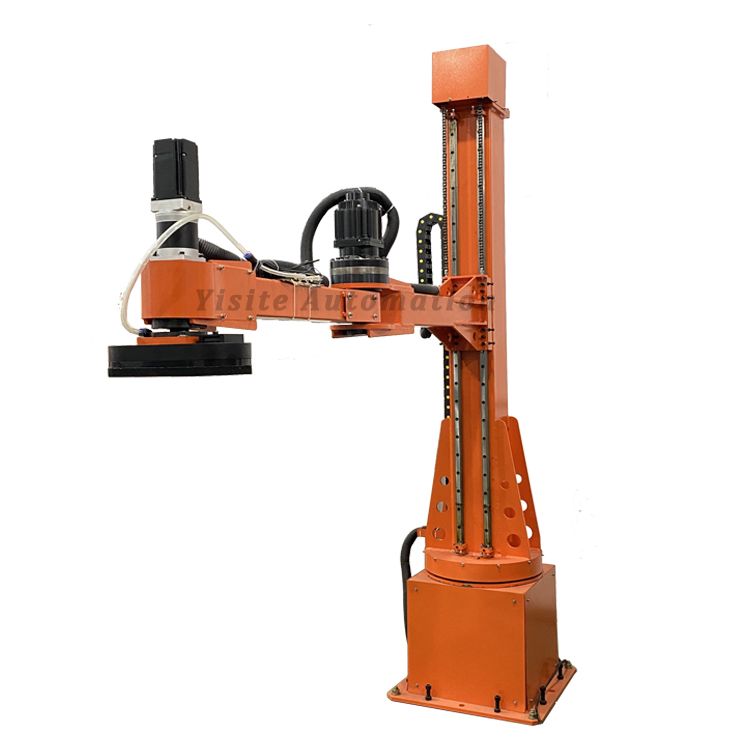

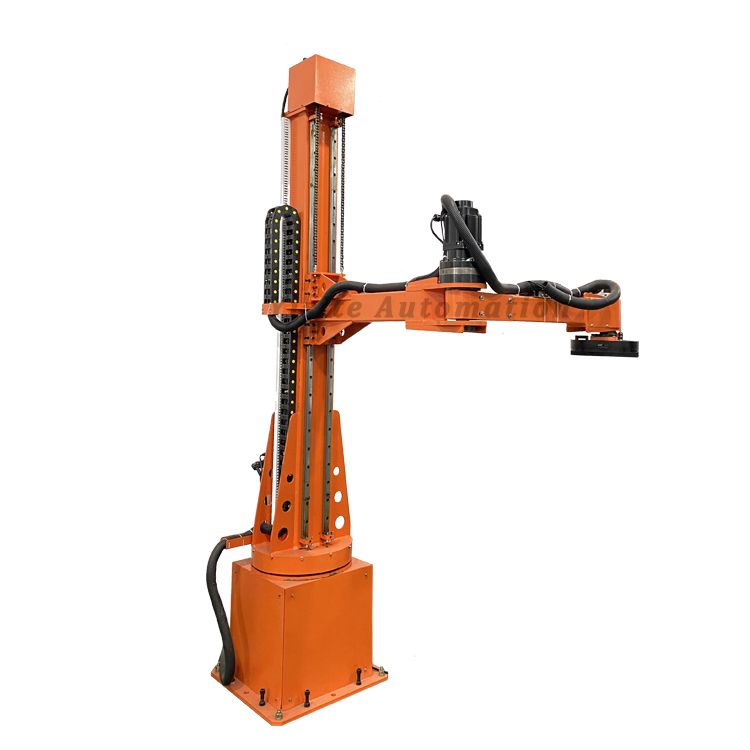

YST-115Multi-Joint Manipulator Robot
Short Description:
Multi-Joint Manipulator Robot parameter
payload:150KGS
speed:10-12S/circle
Z axis travel:1500mm
Y axis trave:2000mm
α axis(left and right) travel:330°
accuracy:±1mm
power:15kw

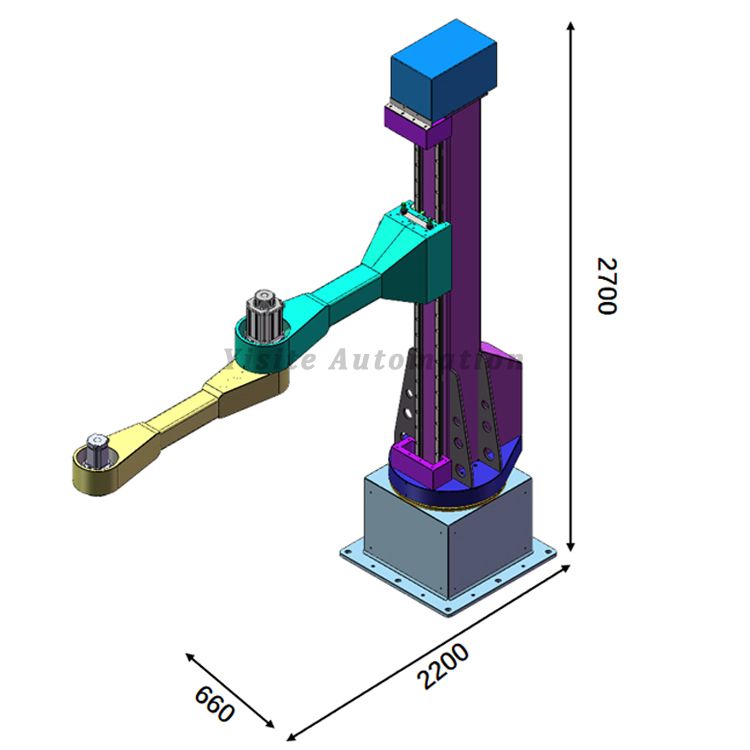

Size:2700x2200x660mm
Weight:550KGS
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
Cable power robot manipulator
| Model | YST-115 | |
| Mechanical Structure | Multi-Joint Robot | |
| Manner Of Execution | Cylindrical Coordinate Type | |
| Load Capacity | 150KG | |
| Action Speed | 1200/H | |
| Motion axis | 4 Axis | |
| Actuating Range | Z axis(Up down) | 1500mm |
| Y axis(Front Back) | 2000mm | |
| θ axis(Right Left) | 330° | |
| α Axis(Gripper) | 330° | |
| Reciprocating Accuracy | ±1mm | |
| Power Consumption | 7.5KW | |
| The body weight(without fixture) | 550kg | |
Product Details
Single Column Palletizer Functional features：
1.Robot-specific system, touch operation screen, easy to operate.
2.Simple structure, low failure rate, easy to repair and maintain.
3.Few main parts, few accessories, low maintenance cost.
4.Small footprint, can adapt to various working environments.
5.High safety, continuous and long time stable operation.
Single Column Palletizer Applicable fields
1．Chemical, building materials, feed, food, beverage, beer, automated logistics and other industries, with different grippers.
2．It can realize the crating and palletizing of various shapes of finished products in different industries.
Single Column Palletizer Applicable packaging forms:
Bags, boxes, cans, bottles (can be customized according to the user's non-standard gripper).
Single Column Palletizer Palletizing form：
Flexible to meet the various palletizing requirements of the site, non-standard palletizing design can be made according to the user's requirements.
