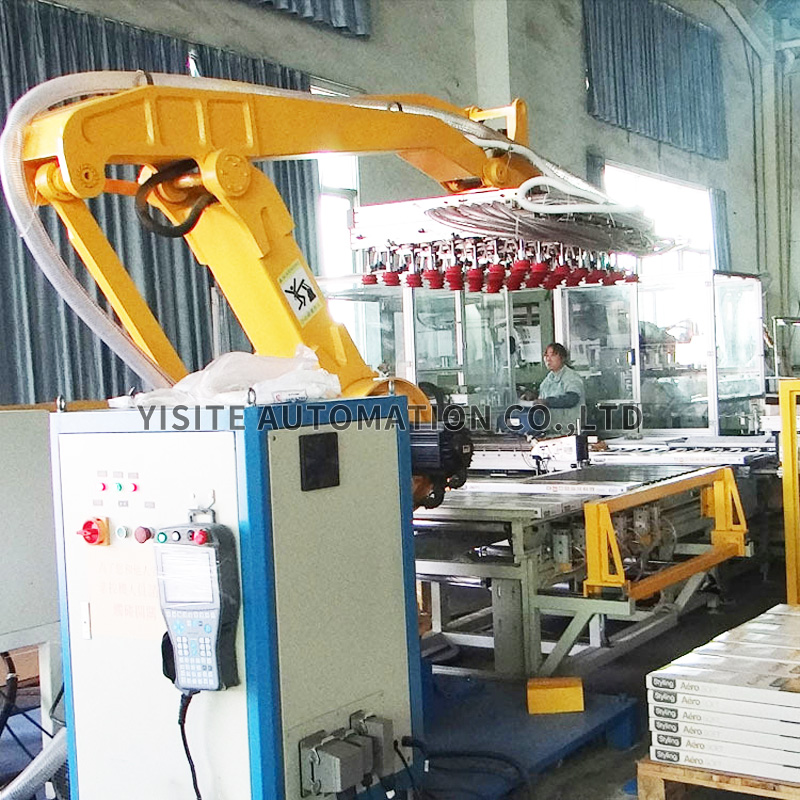

suction stacking robot arm palletizer
Short Description:
suction stacking robot arm palletizer are used to place materials in woven bags or packaged and unpackaged regular items on pallets (wooden) in a certain arrangement for automatic stacking, which can be stacked in multiple layers and then launched for easy continuation to the next step of packaging or forklift transport for warehouse storage. Palletizing robot can realize intelligent operation management, which can greatly reduce labor personnel and labor intensity.
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
SPECIFICATIONS FOR AUTOMATIC ROBOT PALLETIZER
| Robot arm | Japanese brand robot | Fanuc | Yaskawa |
| German brand robot | KUKA | ||
| Switzerland brand robot | ABB (or other brand which you prefer) | ||
| Main performance parameters | Speed capacity | 8s per cycle | Adjust according to products and arrangement per layer |
| Weight | About 8000kg | ||
| Applicable product | Cartons, cases, bags, pouch bags | Containers, bottles, cans, buckets etc | |
| Power and air requirements | Compressed air | 7bar | |
| Electric power | 17-25 Kw | ||
| Voltage | 380v | 3 phases | |
Main Features
①Simple structure and few parts. Therefore, the failure rate of parts is low, stable performance, simple maintenance and repair, and requires less parts in stock.
②Less floor space. It is conducive to the arrangement of production line in customer's plant, and can leave a larger storage area. Gantry truss robot can be set up in narrow space, that is, it can be used effectively.
③Strong applicability. When the size, volume and shape of the customer's products and the shape of the pallet change, it only needs to be modified slightly on the touch screen, which will not affect the normal production of the customer.
④Low energy consumption. Usually the power of mechanical palletizer is about 26KW, while the power of truss robot is about 5KW. This greatly reduces the running cost of the customer.
⑤All controls can be operated on the control cabinet screen, which is very easy to operate.
⑥Only need to position the gripping point and placement point, and the teaching method is easy to understand.
1. Unique robotic 4-link actuation structure, eliminating the need for complex arithmetic and control of articulated industrial robots.
2. Outstanding energy-saving features. Power consumption of 4kW, 1/3 of traditional mechanical palletizers.
3. Simple demonstration and teaching, easy operation, convenient maintenance and low requirement of spare parts in stock.
4. Excellent system integration capability, integrated gripper and design and manufacture of other peripheral equipment.
5. Extremely competitive price/performance ratio.
6. Double shift saves 8 people in labor.
It can palletize bags, barrels or cartons in groups of 4 on pallets, full 16 into one layer, or 2-6 layers according to customer's requirements, and only one person can easily complete this palletizing work. Lifting and translating adopt linear bearing sliding, driven by servo motor. Adopting PLC and touch screen joint control mode, the operation parameters and action process can be adjusted on the touch screen by itself; with functions of fault alarm, display, fault stop, etc.
Applicable packaging form
The packing machines are always packed in export standard plywood package are supplied with well packed. We can make the packages according to customer's requirement,such as sea package or air packages
Stacking form
The robot palletizer is a professional industrial equipment integrated intelligent robot, the packages or the boxes are put on the trays or in the boxes one by one according to the preset modes . As a follow-up device of the packing line, the production capacity and transshipment capacity are improved. It is widely used in chemicals, building materials, feed, food, beverage, beer, automation, logistics and other industries. With different clamps, it can be used for packaging and palletizing for various shapes of finished products in different industries.
