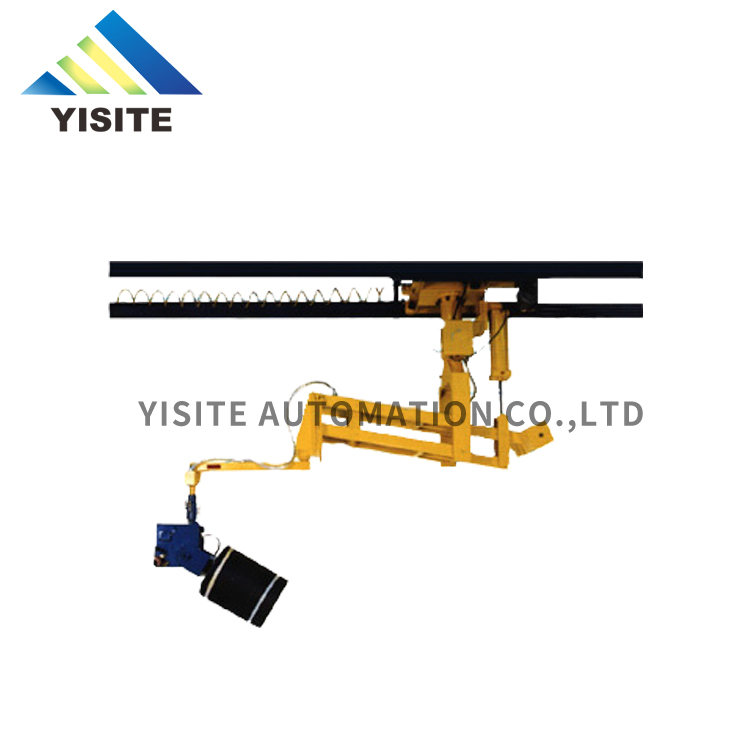

customized hanging manipulator pneumatic

Short Description:

hanging manipulator pneumatic is a remote intelligent handling tool.By detecting the suction cup or the end of the manipulator and balancing the gas pressure in the cylinder, it can automatically identify the load on the mechanical arm, and automatically adjust the air pressure in the cylinder through the pneumatic logic control circuit, to achieve the purpose of automatic balance.

hanging manipulator pneumatic

application

about us

Yisite

We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.

Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers

Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.


Product Detail

Video

Product Tags

Product characteristics

Suspension booster manipulator structure consists of the following systems:

Pressurization system: to ensure the pressure required by the system (safety) in the case that the factory gas source is unstable;

Balance system: Ensure that the system is always suspended;

Brake device: when the manipulator is idle, it can be locked in a safe position that is incomplete (safe);

推车移动式助力机械手4
推车移动式助力机械手4

It is widely used in automobile manufacturing, home television news, metal manufacturing industry casting aviation as well as paper making, food and tobacco, glass and ceramics, pharmaceutical, chemical oil and other industries



The working principle and mode of the suspension power manipulator:

By detecting the suction cup or the end of the manipulator and balancing the gas pressure in the cylinder, it can automatically identify the load on the mechanical arm, and automatically adjust the air pressure in the cylinder through the pneumatic logic control circuit, to achieve the purpose of automatic balance.When working, heavy objects are like being suspended in the air, which can avoid the collision of product docking.Within the working range of the mechanical arm, the operator can easily move it back, left and down to any position, and the person itself can easily operate.At the same time, the pneumatic circuit also has chain protection functions such as preventing accidental object loss and pressure loss protection

Features

Cost-effective palletizing solution

Safety light curtain controls located at the full pallet’s exit point

Maximum design flexibility enabling the equipment to accommodate most operational requirements and layouts

System can support up to 15 different stacking patterns

Standard components for easy maintenance
