project instruction:
This project is automatic palletizing of cartons, taking materials from the conveyor line, and putting them into the pallets on both sides according to the set palletizing style.
The weight of the carton is 20KG, the stacking height is 2.4 meters, and the working radius of the manipulator is 2 meters.

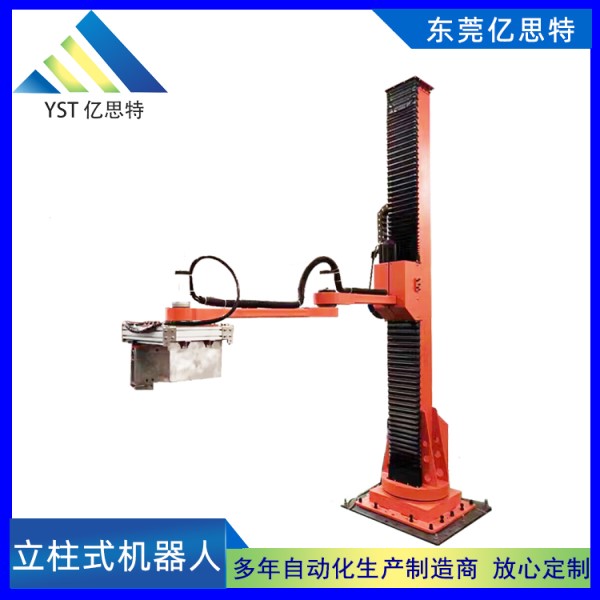

| Model | YST-132 | |
| Structure | single column palletizer | |
| working method | cylinder cartesian | |
| Load | 20 KG | |
| speed | 5 circles/miniute | |
| axis | 4 | |
| working range | Axis Z | 2400 mm |
| Axis R | 330 ° | |
| Axis θ | 330 ° | |
| Axis α | 330 ° | |
| Accuracy | ± 1 mm | |
| Power | 6 KW | |
