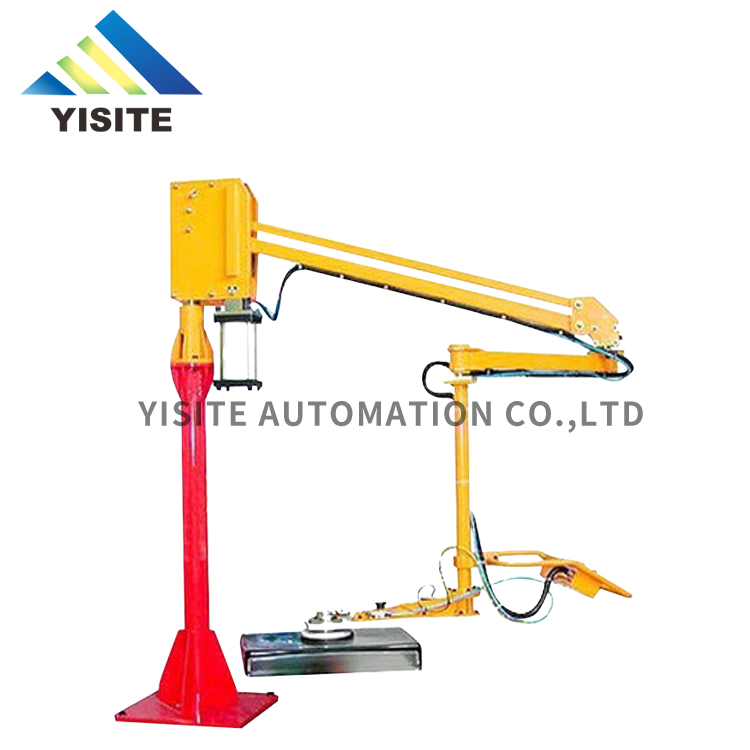

automobile parts balancer air pneumatic manipulator
Short Description:
Pneumatic manipulator, also known as manipulator, balance crane, balance booster, manual load transfer machine (the above statement is not professional but is popular in China), is a novel, used for material handling and installation and labor saving operation of power equipment.It applies the balance principle of force, so that the operator can push and pull the heavy object accordingly, which can balance the moving positioning in space.The heavy object forms a floating state when lifting or decreasing, and non-operation force is guaranteed by the gas road (the processing process and design cost control, the operation force is less than 3kg as the judgment standard) the operation force is affected by the work-piece weight of the working piece.Without skilled operation, the operator can push and pull the heavy object by hand and put the weight properly in any position in the space.
The pneumatic robot arm manipulator has the characteristics of light structure, convenient disassembly and widely used, and can carry a load within 300kg.
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.
characteristic
Working length：
700-3200mm
Lifting height：800mm
Rotation：360°
Max weight：300kg，(customized is available)
Air pressure：0.6-0.8MPA
High stability and easy to operate
Using the principle of pneumatic pressurization, the workpiece operation is only needed to operate the control button.
High efficiency and short treatment cycle.When loading, the operator can control the artifact movement in space with a smaller power, and can stop at any position, the operation process is simple, fast, and consistent.
High safety performance,Air cut-off protection and automatic braking device.
The main components of international famous brands are all international famous brands, and the quality is guaranteed.
The hard-arm power manipulator system mainly includes four parts
1) Track rails system;
2) Machinist host machine;
3) Fixture part;
4) carry part;
5) Gas circuit control system.
SPEC
1. When the torque is generated, the workparts flipped or inclined, and the plant height is limited.
2. The whole process is "floating", which greatly reduces the power consumption of workers' handling workparts.
3. Equipped with a brake device to effectively lock the rotary joint to prevent drift.
4. Gas break protection and alarm, self-lock to prevent falling when air pressure drops.
5. Parts protection and control device to avoid accidental impact and dust accumulation, and ensure the stable operation of precision elements.
The system is equipped with a gas storage tank to provide continuous and stable compressed air for the system. When the main gas supply source accidentally breaks off the gas, it can provide a certain period of time, and make the system have sufficient power to complete the operation or unload the workparts.
Equipped with safety misoperation protection device to prevent damage to person or equipment. Before the operator confirms the installation condition,the workparts are not installed,the workparts shall not be unloaded.The artifact must be effectively supported to be released.
