carton truss manipulator stacking
Short Description:
carton truss manipulator stacking is a fully automatic industrial equipment based on the right-angle X, Y, and Z three-coordinate system to adjust the workparts, or realize the track movement of the workparts.Its control core is through the industrial controller (such as: PLC, motion control, microcontroller, etc.).The controller analysis and processing of various input (various sensors, buttons, etc.) signals, after making logical judgment, issue execution commands to each output element (relay, motor drive, indicator light, etc.) to joint movement between X, Y, Z axes, realize a complete set of automatic operation process.
carton truss manipulator stacking in industrial applications, can achieve automatic control, repeatable programming, multifunctional, multi-freedom, freedom of movement between space right-Angle relationship, multi-purpose operation machine.It is able to carry objects, operate tools to complete various tasks.Common organic lathe and unloading robot, palletizing robot, glue coating (dot glue) robot, detection robot, polishing robot, assembly robot, medical robot and so on.
about us
We are a professional customized automation equipment manufacturer. Our products include depalletizer, pick and place packing machine, palletizer, robot integration application, loading and unloading manipulators, carton forming,carton sealing,pallet dispensper,wrapping machine and other automation solutions for back-end packaging production line.
Our factory area is about 3,500 square meters. The core technical team has an average of 5-10 years of experience in mechanical automation, including 2 mechanical design engineers. 1 programming engineer, 8 assembly workers, 4 after-sales debugging person, and other 10 workers
Our principle is “customer first, quality first, reputation first”, we always help our customers “increase production capacity, reduce costs, and improve quality” we strive to become a top supplier in the machinery automation industry.

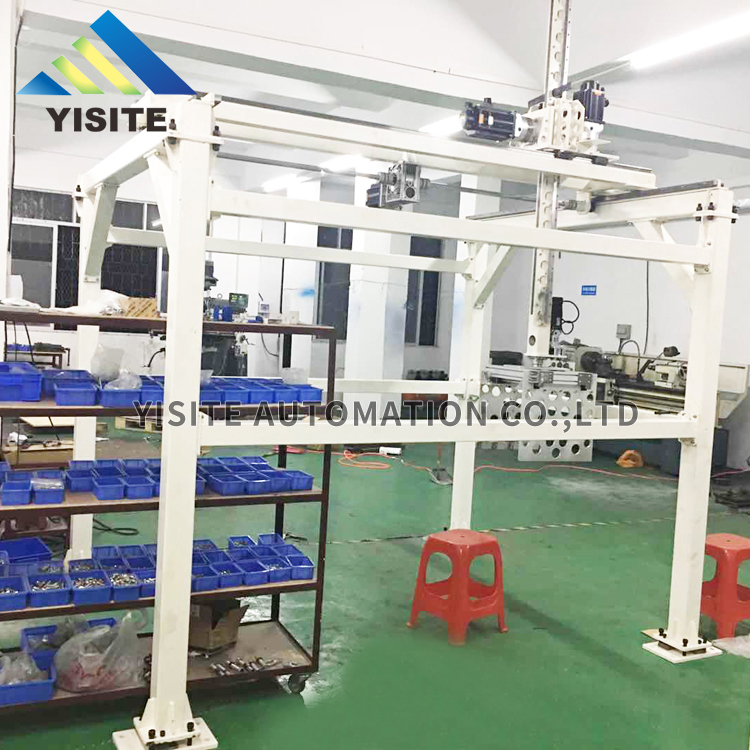

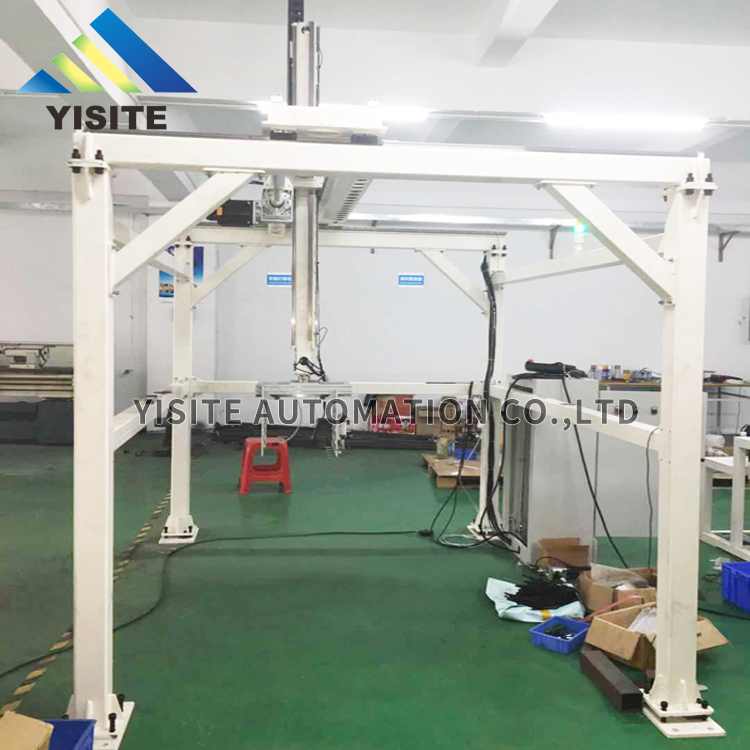

Truss XYZ fully automatic carton bos stacking manipulator
The ability of fully automatic mechanical palletizing machine is higher than ordinary mechanical palletizing and manpower.The structure is very simple,low failure rate, easy to maintain and repair.Less main components, less accessories, low maintenance cost.Palletizing manipulator can be set in a narrow space, which can be effectively used.All the control can be operated on the control cabinet screen, the operation is very simple.Strong versatility: the stacking and stacking of different goods can be replaced the clam clap of the manipulator,reduces the purchase cost of customers.
Yisite standardized pallet handling palletizing robots are specifically designed for moving and stacking cases,with both cardboard and plastic board designed to minimize cost and installation time.
They are equipped with three linear actuators (X axis, Y axis and Z axis) and an optional additional rotation axis (C axis), and a removable clamper weighing up to 50kg.Linear actuators with synchronous band drives have been successfully used for many years and last long service life to ensure reliability.The flexible Z-axis minimizes the vertical space required for the tray handling robot.The optional C axis enables rotation around the vertical axis, thus allowing repositioning of individual packages and boxes-this has many advantages, for example, the entire surface area of standard pallets can be optimally loaded for cartons or box size combinations of different boxes.
Benefits of heavy components
1. Gantry manipulator system is easy for maintenance;
It is not difficult to follow the correct maintenance recommendations.It is recommended to lubricate the linear movement of the V-shaped guide wheel, hence the automatic regulate lubrication.The external track lubricator can be added to the slide assembly, or add the wheel cover wiper.In some cases, the maintenance technician can replace the individual wheel bearing without completely removing the motion shaft or removing the cover wiper.
2. load capacity and life expectancy;
Truss robot arm manipulator are able to withstand high load conditions and well perform in high speed, high cycle applications.Each design is validated by life expectancy calculations, so the durability of the system can be determined in the design phase.If you need a longer life of service, you can always choose to increase the load capacity.Capacity is limited by the rated load of the bearing and the physical structure of the bearing.You can use larger bearings with a larger capacity or switch to other types of bearings (for example, from ball bearings to roller bearings).
Application of palletizing robot manipulator industry
Suitable for motorcycle, office chairs, oven, home appliances, piano, kitchenware, food, beverage, beer and other box packaging palletizing, feed, fertilizer, rice, flour, cement bags, silica powder, heavy calcium, calcium carbonate, quartz sand, kaolin and other kinds of bag packaging palletizing, aluminum alloy ingot, plastic floor, chemical, building materials, metal processing plate automatic palletizing, can be realized in different industries of various shapes of automatic handling palletizing.
